AUTOMATIC VOLTAGE AND CURRENT PROTECTION RELAY

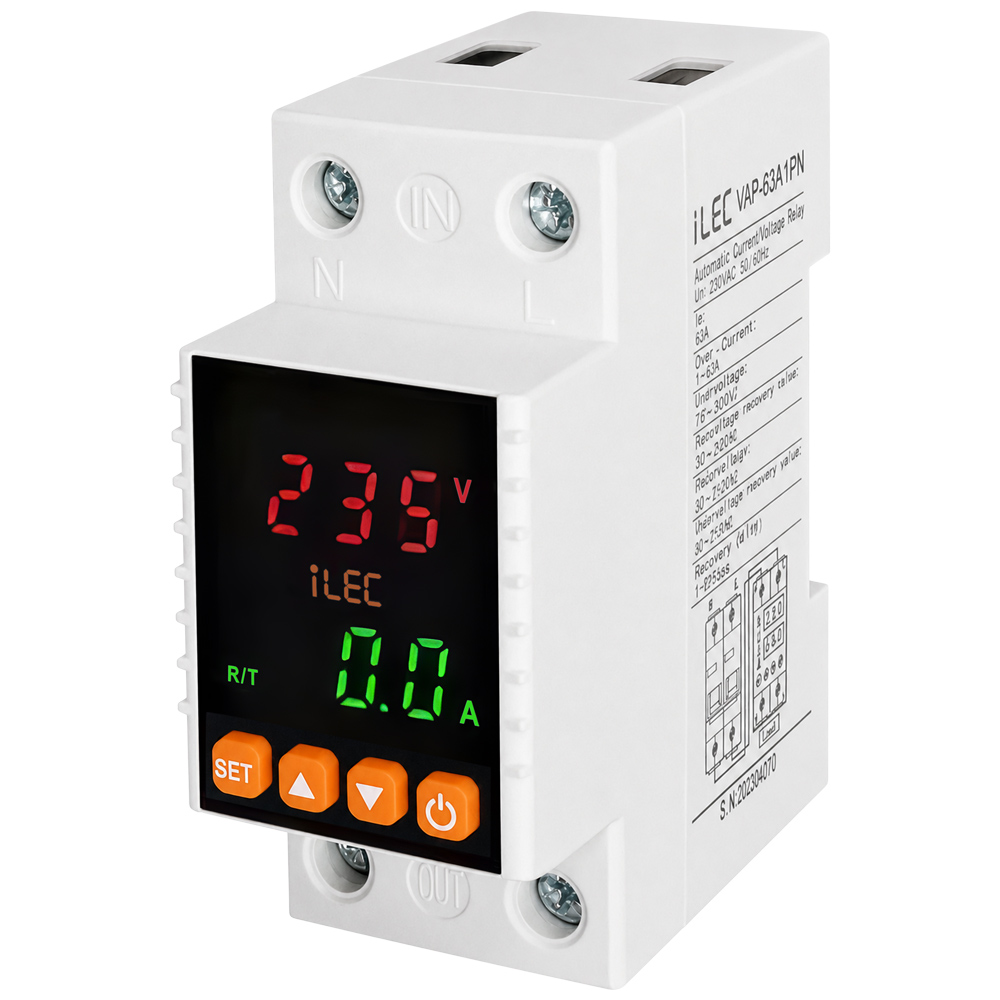

Model VAP-63/1PN

iLEC VAP-63A/1PN is a voltage and current protection device for 1P+N 63A systems, designed to monitor and protect against overvoltage, undervoltage, and overcurrent conditions. It features automatic switching and automatic recovery after faults.

Feature

• Overvoltage, undervoltage, and overcurrent protection to help prevent electrical overload.
• Compact design with flame-retardant engineering plastic housing, providing excellent insulation and heat resistance.
• DIN rail mounting module, suitable for residential and industrial electrical panels.
• LED display for clear real-time monitoring of voltage, current, and operating status.
• Adjustable voltage, current protection thresholds, and recovery delay time.
• Parameters can be easily configured via front-panel function buttons.
• Screw-type terminals ensure fast, secure, and safe wiring connections.
• High-durability conductive alloy relay contacts for stable operation.
• Automatic power cut-off and automatic reconnection when voltage returns to normal.
• Effectively protects household appliances, machinery, electrical cabinets, and power systems.
• Suitable for homes, offices, shops, and small industrial workshops.

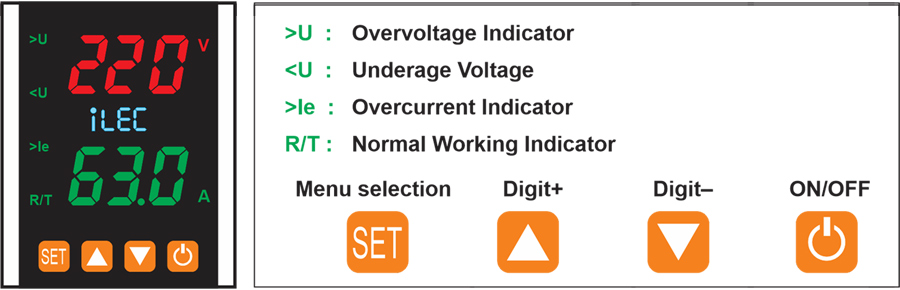

Front-Face Panel

Specifications

Parameter
