Digital meters
Digital meters: Voltmeter, Ammeter, Amp - Volt - Hz meter, Multi Function meter

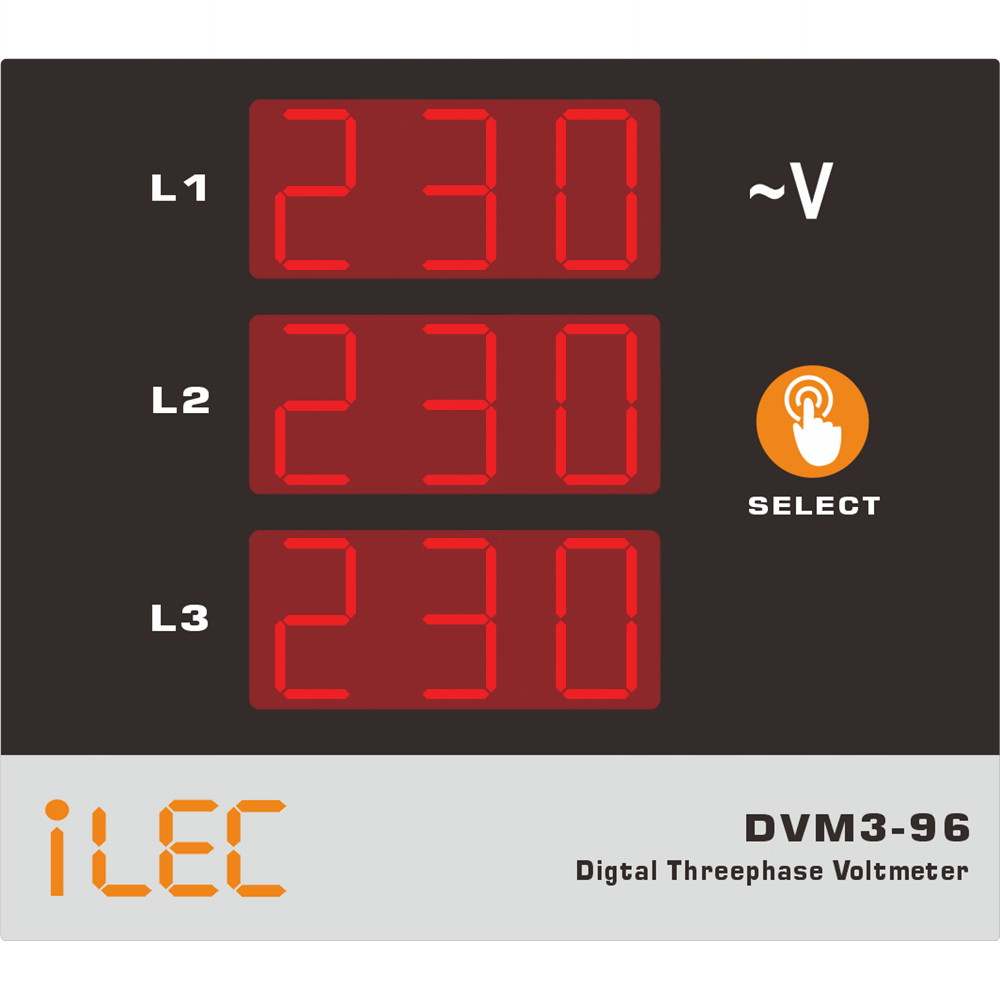

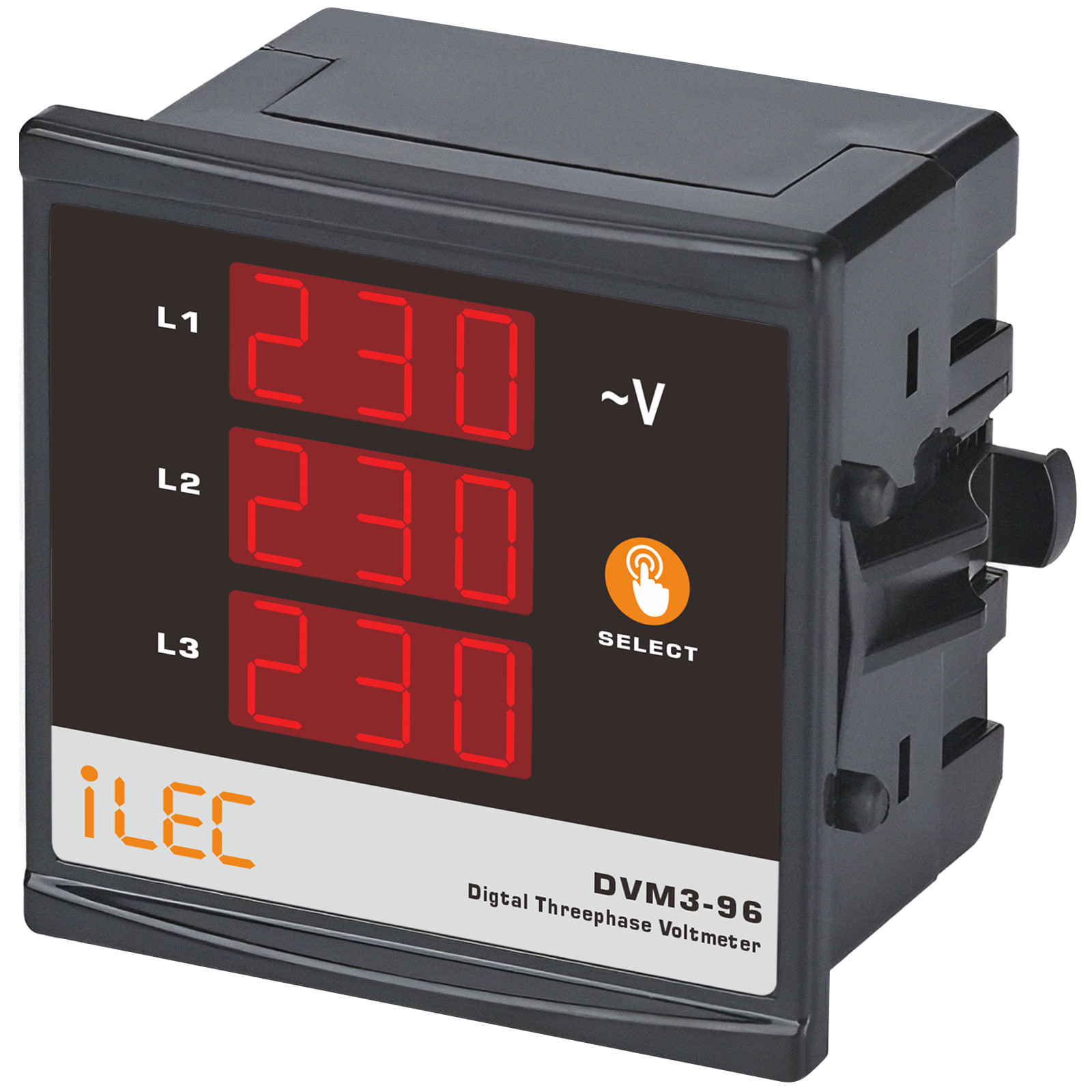

DVM3-96: Digital Threephase Voltmeter
The DVM3 meter is designed to monitor LN and LL voltage of 3P4W network at the same time. It helps to check three phases voltage failures such as over, under voltage and unbalance voltage between phases withdout using a selection switch

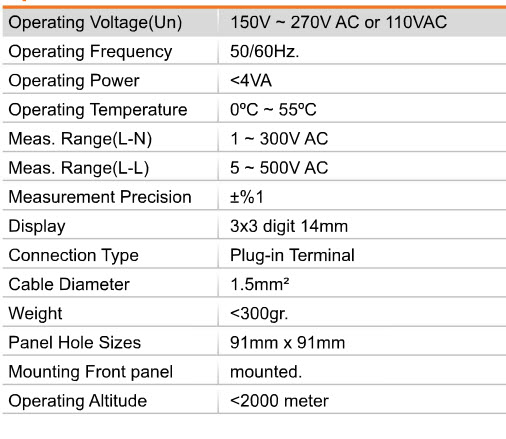

DVM3 SPECIFICATIONS

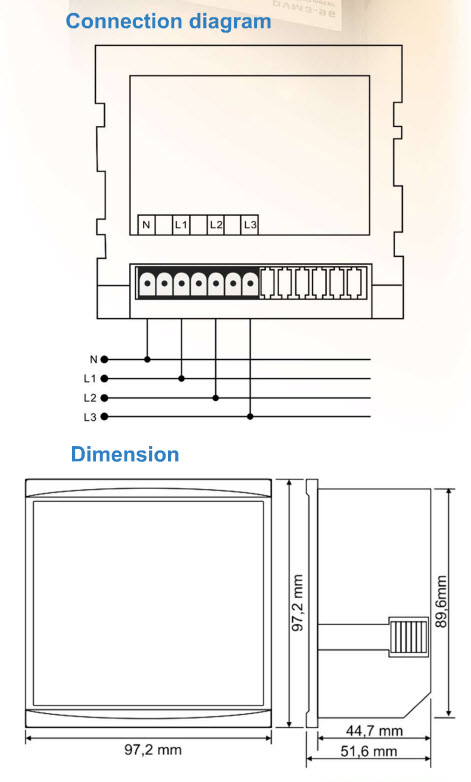

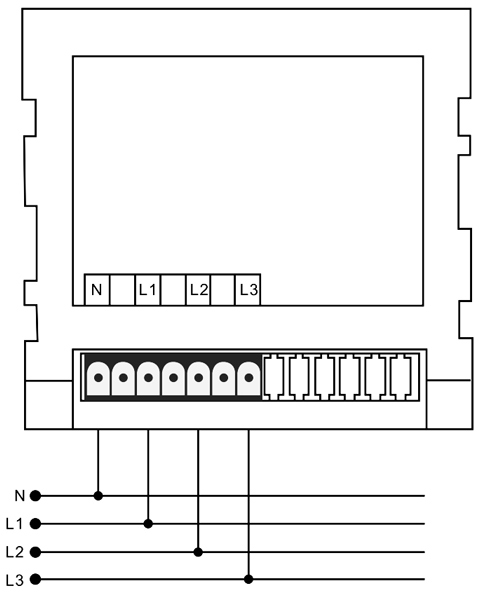

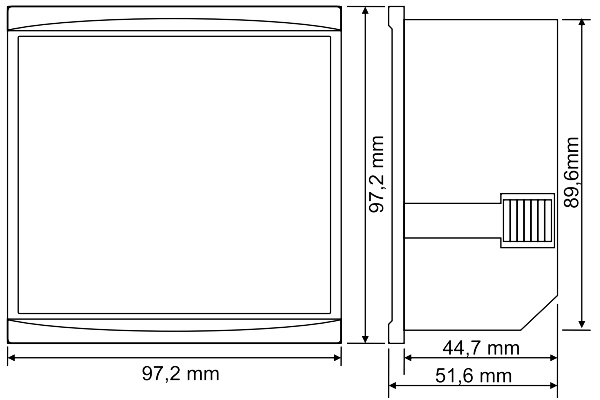

CONNECTION DIAGRAM AND DIMENSION

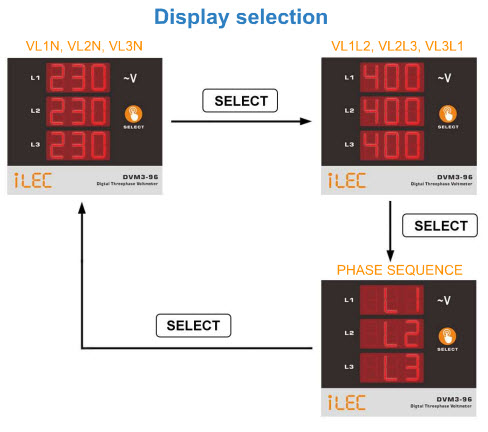

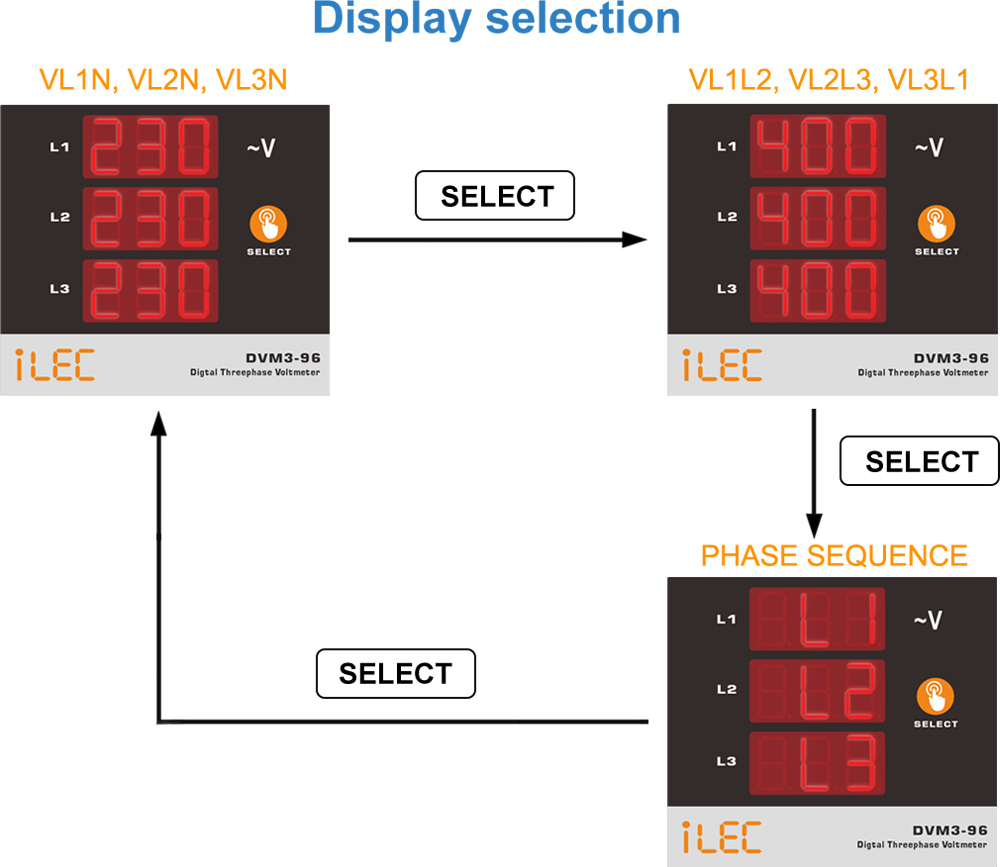

DISPLAY SELECTION
DAM3-96: Digital Threephase Ammeter
The DAM3 meter is designed to monitor three phase currents of 3P network at the same time. It helps to check three phase current status and find unbalance currents between phases.

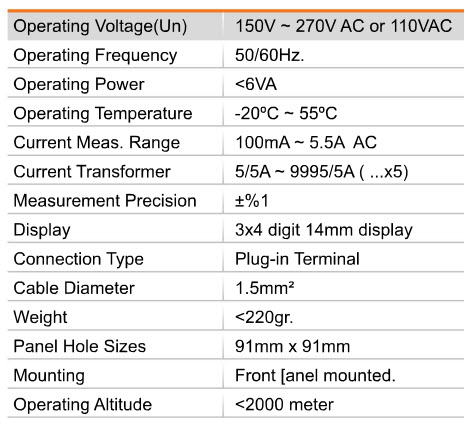

DAM3 SPECIFICATIONS

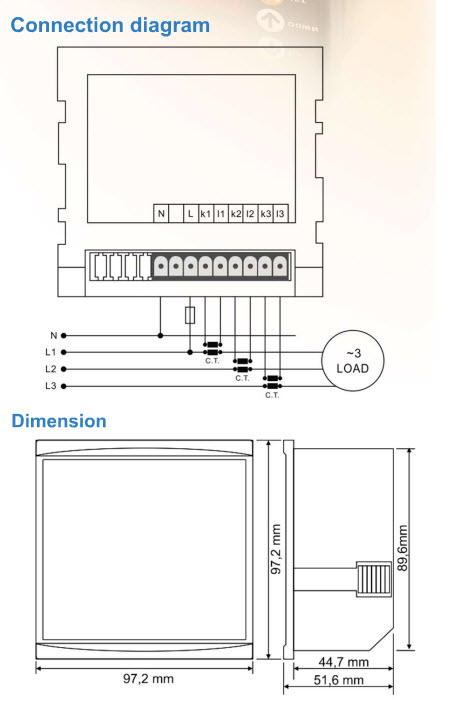

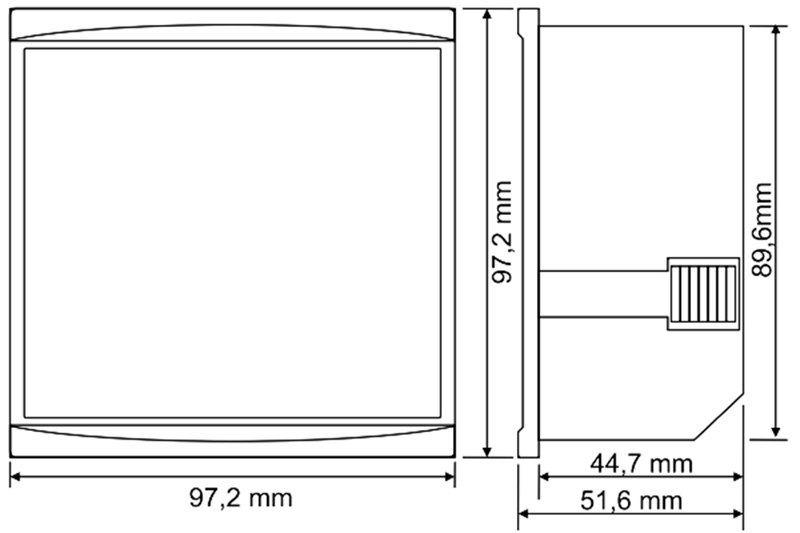

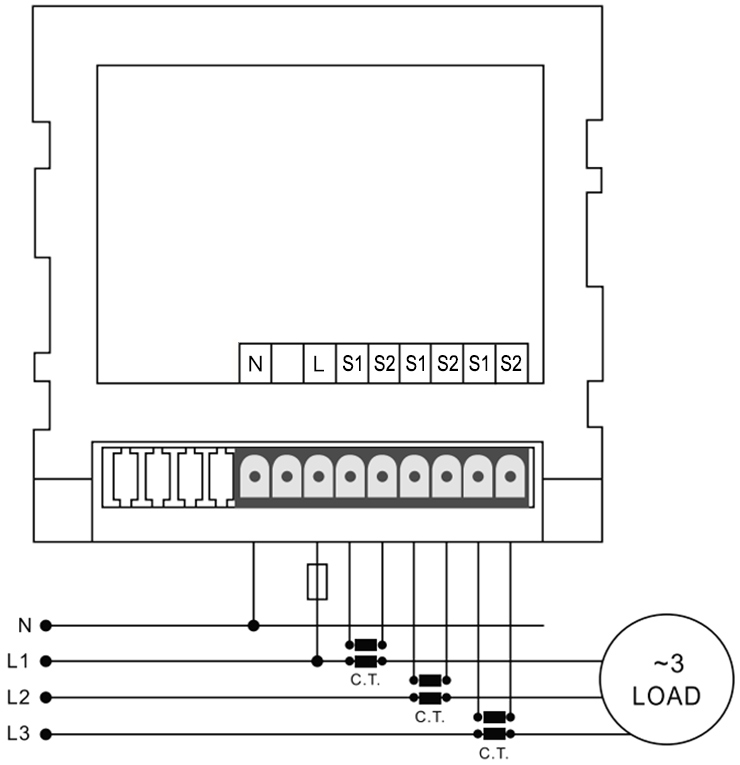

CONNECTION DIAGRAM AND DIMENSION

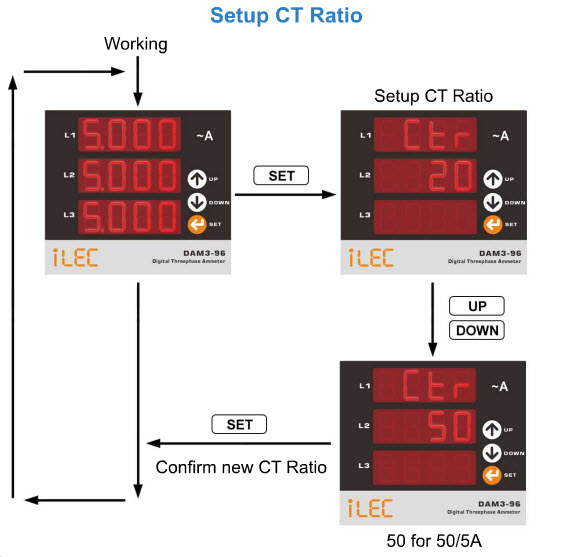

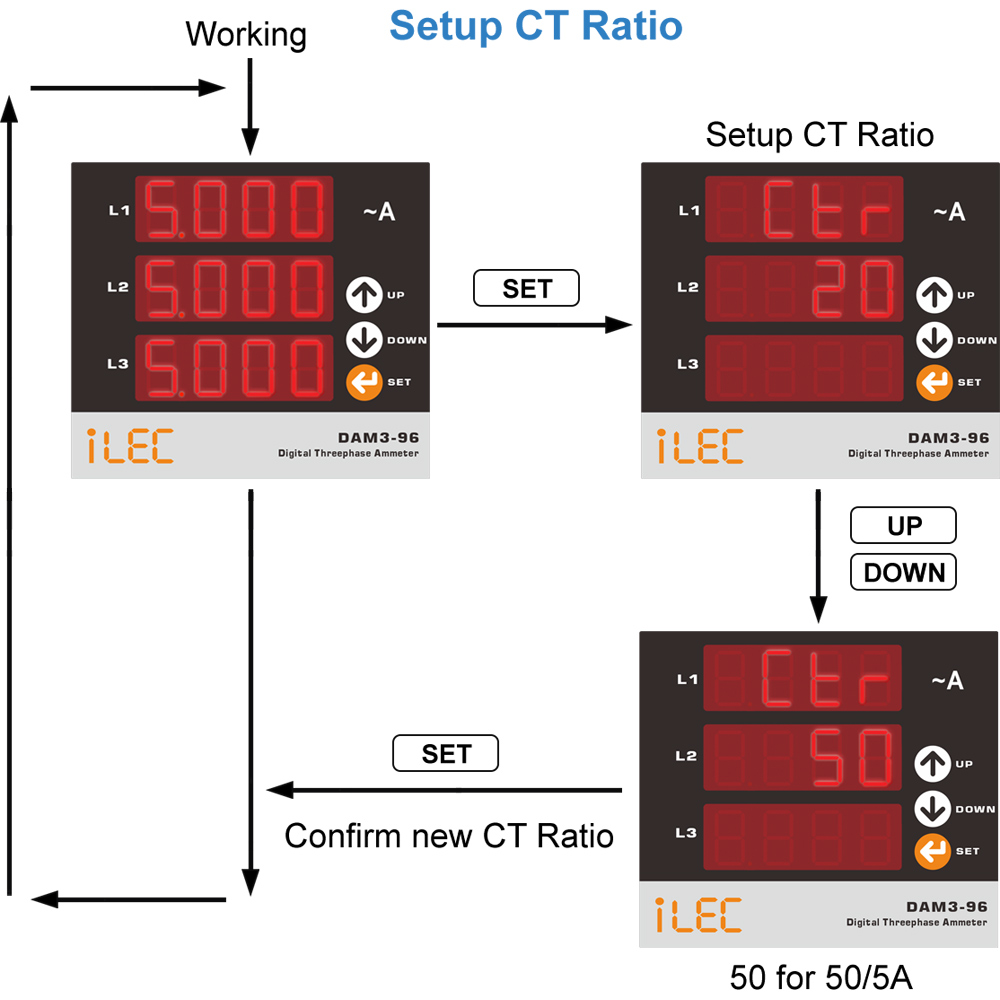

CT RATIO SETTING

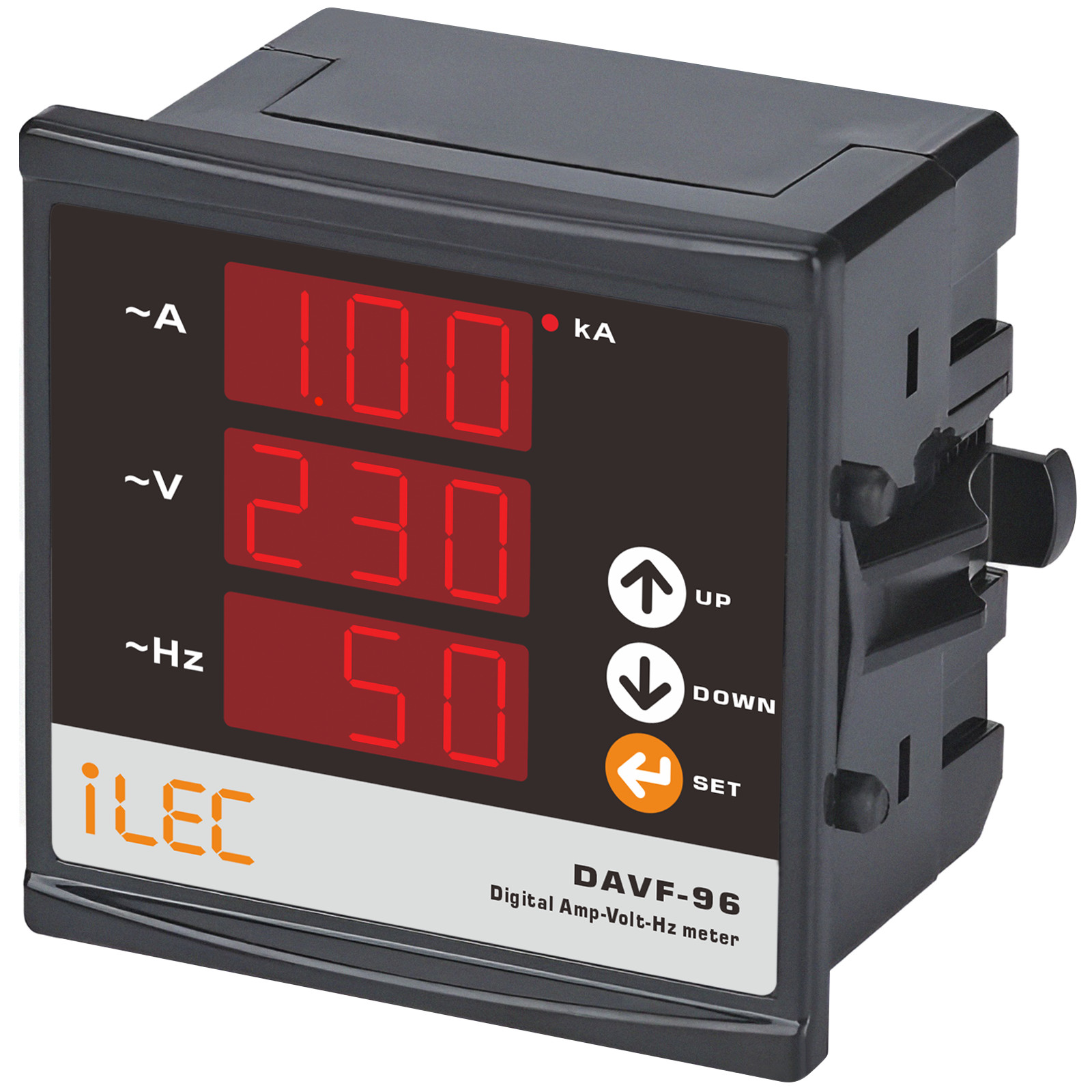

DAVF-96: Digital Amp - Volt - Hz meter
The DAM3 meter is designed to monitor three phase currents of 3P network at the same time. It helps to check three phase current status and find unbalance currents between phases.

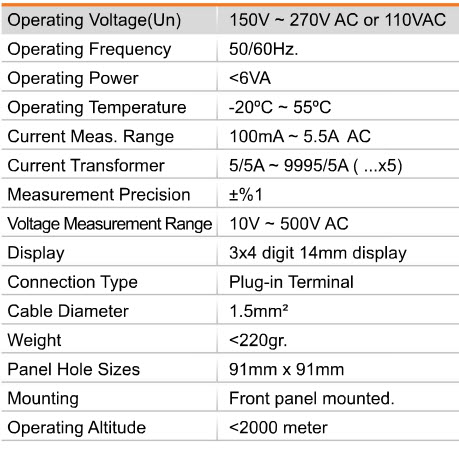

DAVF SPECIFICATIONS

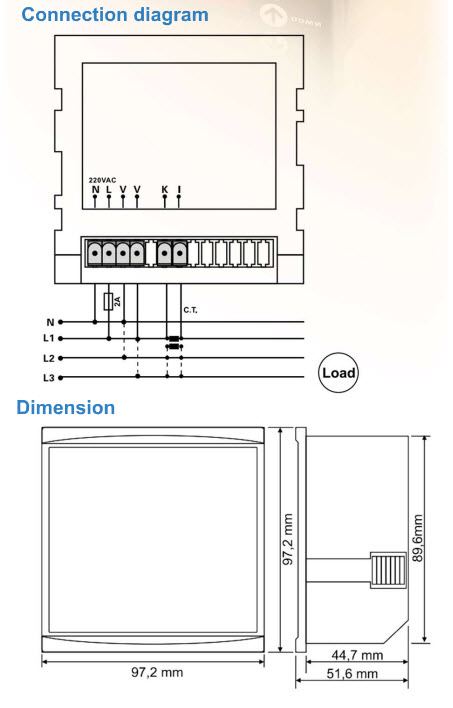

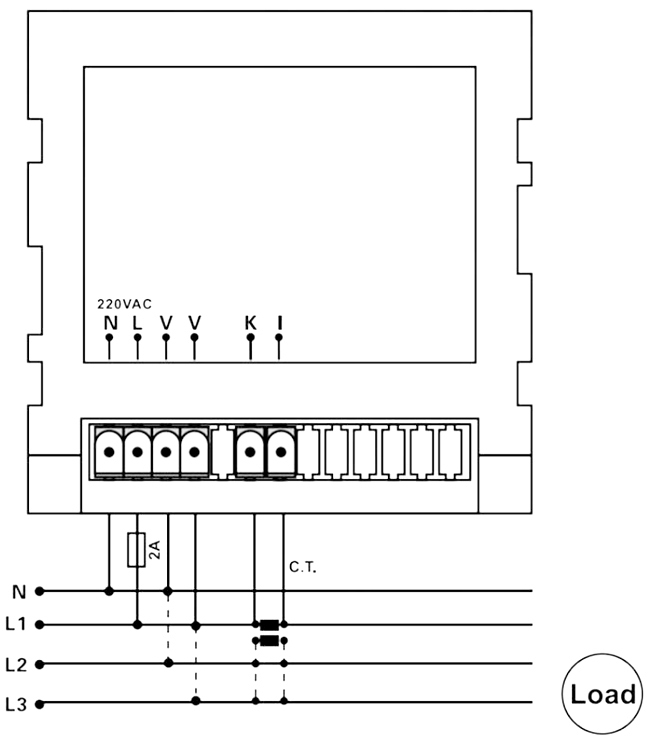

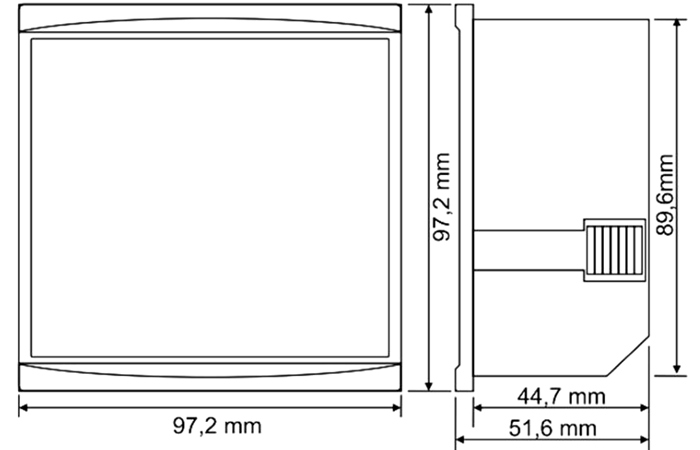

CONNECTION DIAGRAM AND DIMENSION

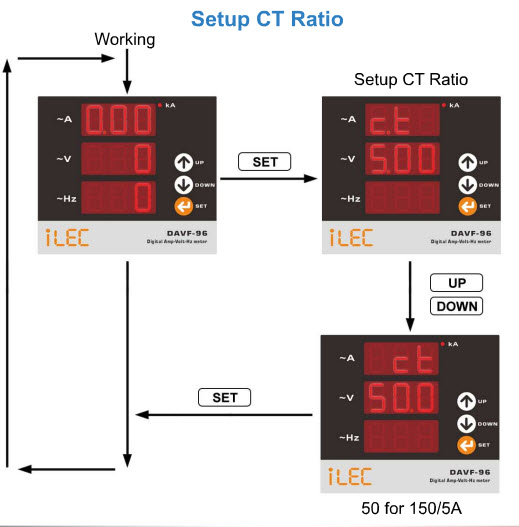

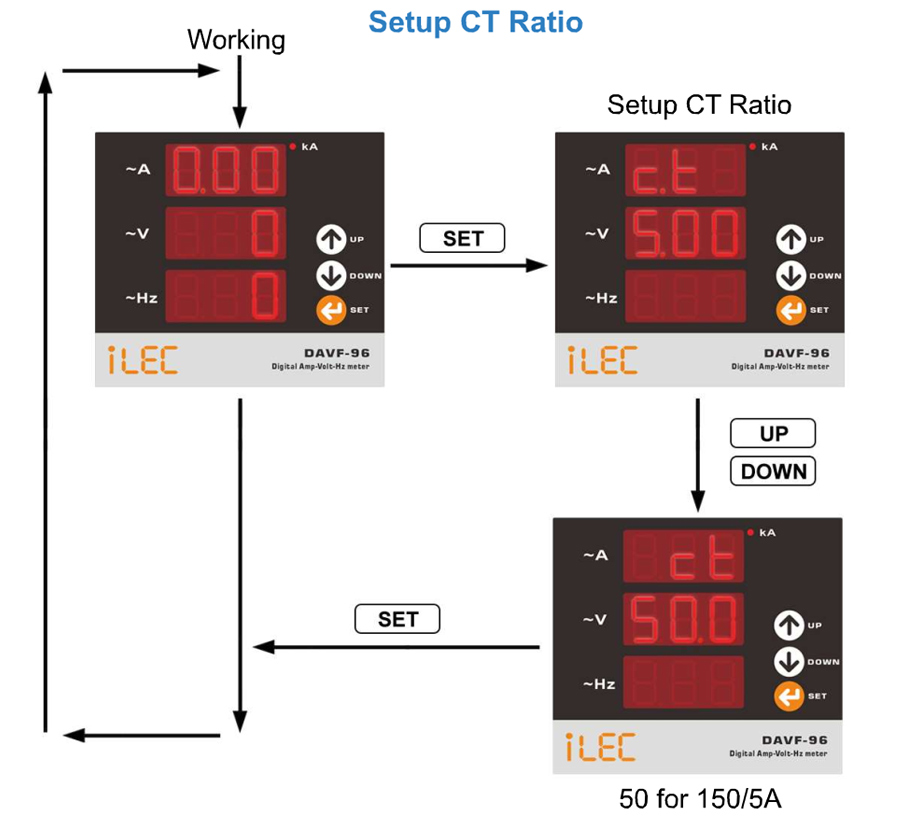

CT RATIO SETTING

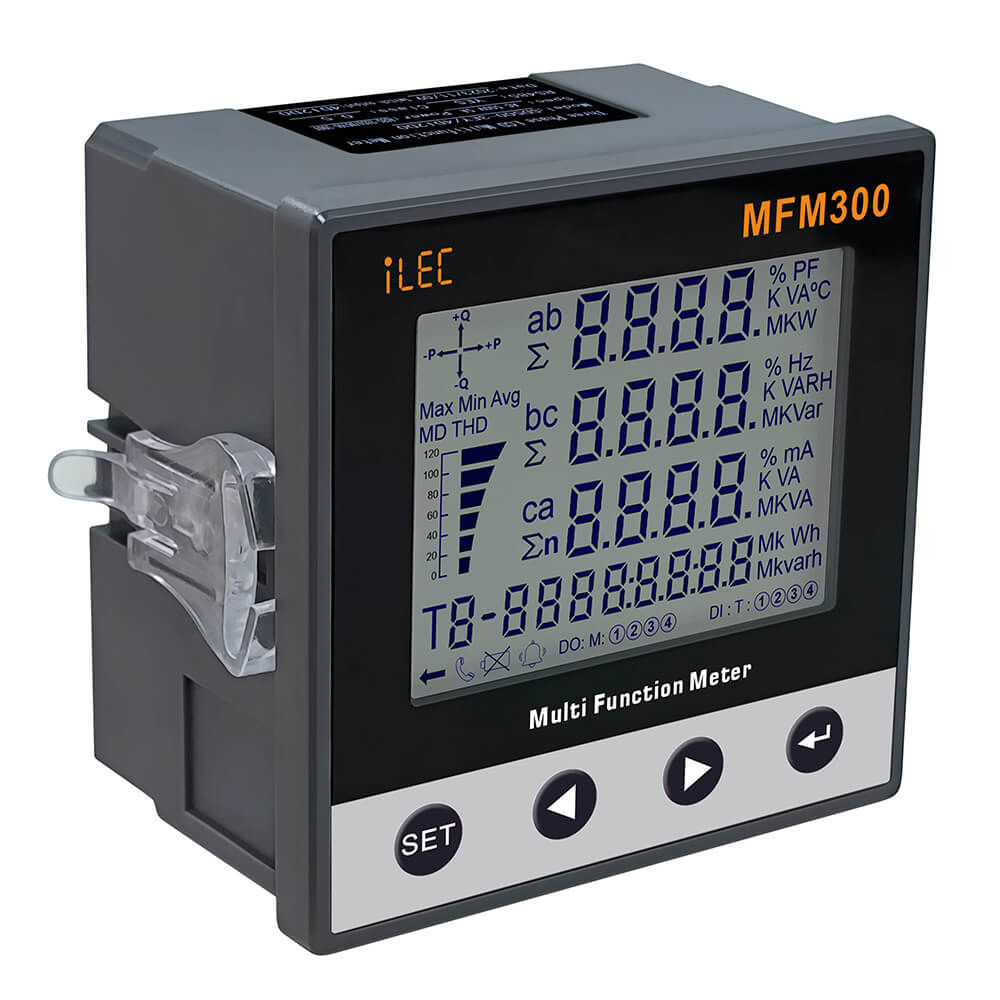

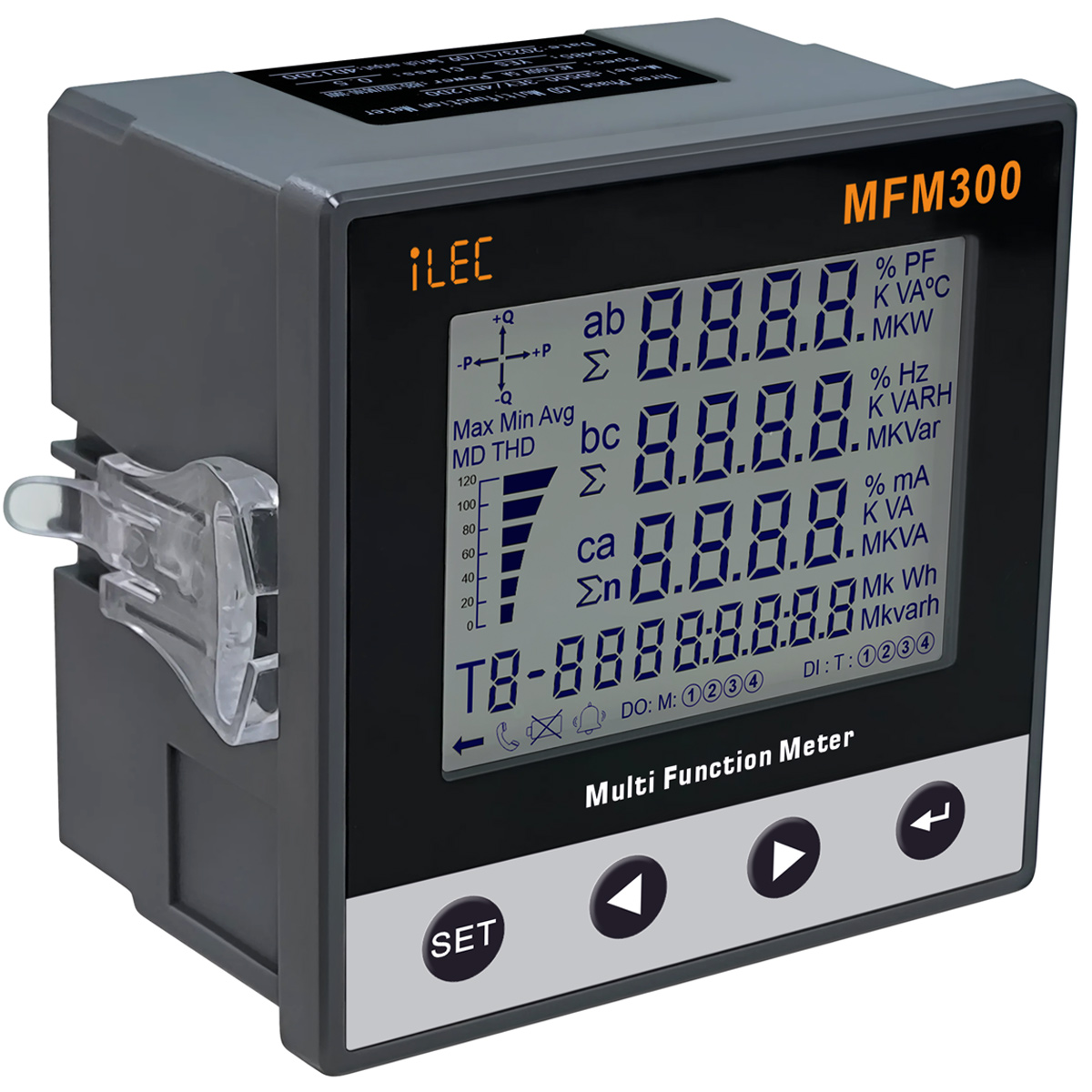

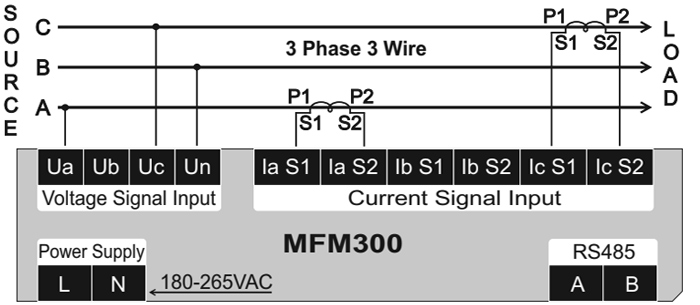

Multi Function Meter iLEC MFM300
ILEC MFM300 MEASUREMENT FUNCTIONS
- Three phase voltage
- Three phase current
- Three phase power (kW, kVar, KVA)
- Three phase power factor, frequency
- Import and Export Energy: kWh, kVarh
- RS485 MODBUS-RTU communication

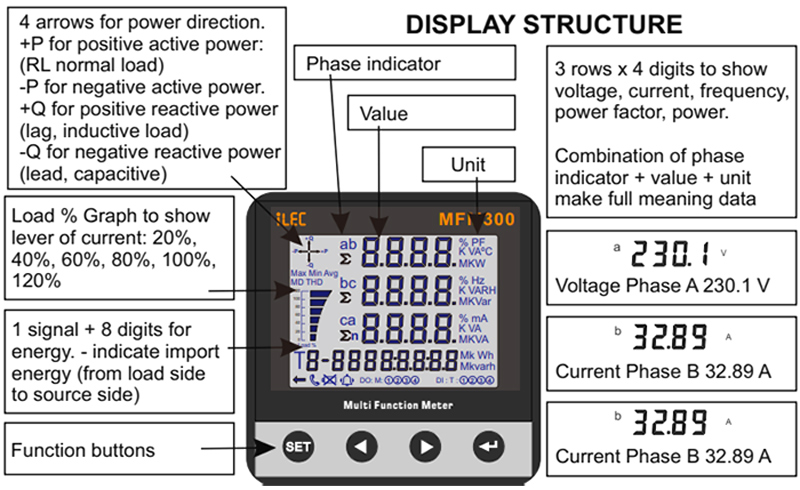

ILEC MFM300 DISPLAY
- Quadrant power direction
- Load %: 0,20,40,60,80,100,120%
- 3 Rows x 4 digits to show electrical parameters
- 1 signal + 8 digits to show energy
MM300 video clip
Basic setting
Display explanation
MFM300 Documents
Download User Manual Multi Function Meter iLEC MFM300
Download Datasheet Multi Function Meter iLEC MFM300
