1. Introduction

• Epoxy Cast Current Transformers are devices used to convert large currents to standard small values (1A or 5A) for metering and protection purposes in electrical systems.
• iLEC PCT is a Protection Current Transformer (PCT) used with Ammeter, Watt meter, electric meter... are manufactured in Vietnam.
• It features high accuracy (Class 1) and operates stably under normal load conditions.

2. Features

• Compact design with rugged epoxy resin casting.
• Designed for overcurrent (OC), earth fault (EF), and other protection relay applications.
• Monitors the power system and provides current signals to protection relays.
• Excellent thermal and mechanical impact resistance.
• Capable of withstanding fault currents many times higher than the rated current.
• High magnetic stability under large fault currents with excellent resistance to core saturation.
• Stable operation with high accuracy.
• Long service life, high operational reliability, and enhanced safety.
• Epoxy iLEC molded current transformer includes: Round type – Square type

3. General Specifications

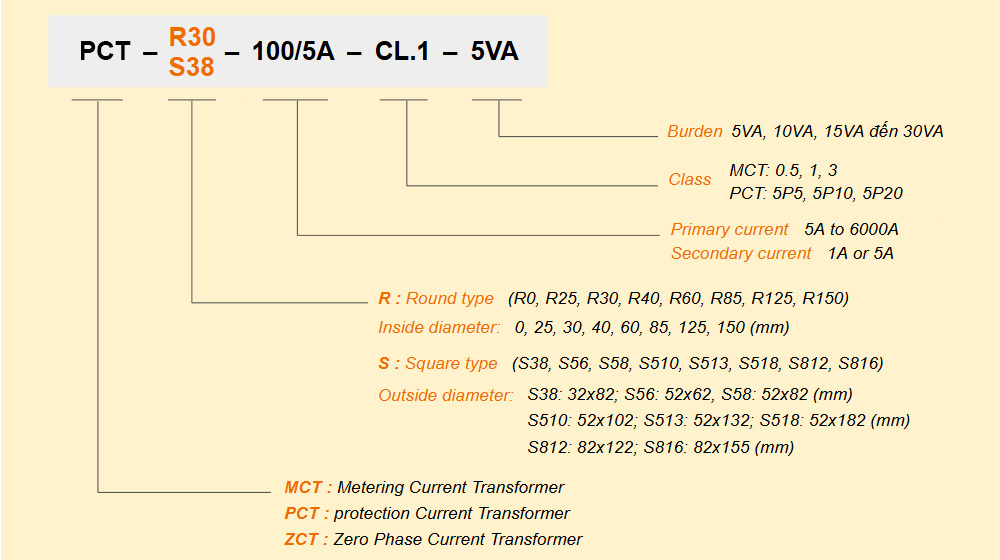

4. Ordering Code

■ Square type

■ Round type
