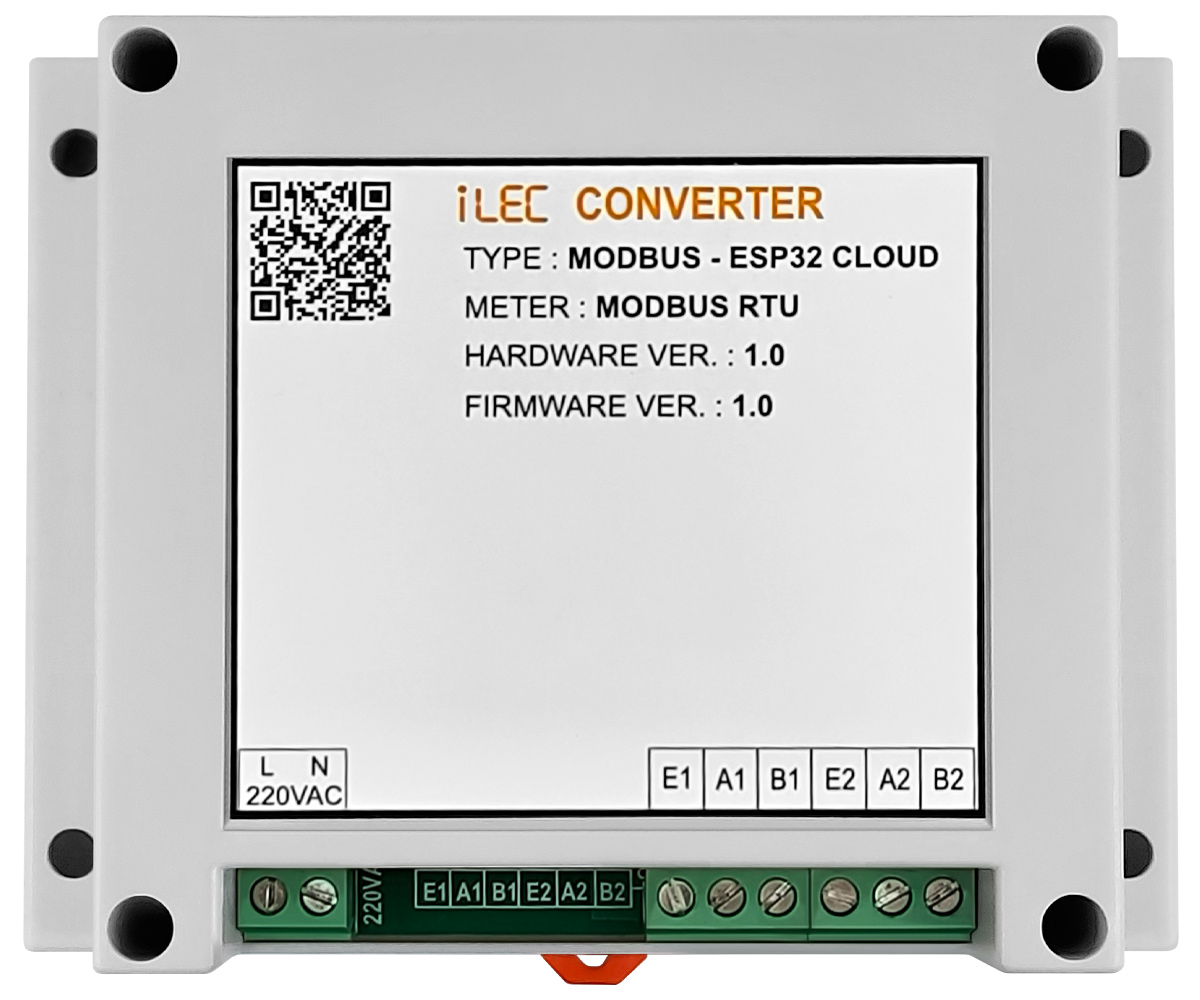

ILEC CONVERTER

TYPE: MODBUS - ESP32 CLOUD

Introduction

  • The Modbus-ESP32 Cloud Gateway is designed to collect data from Modbus RTU RS485 devices and transmit the information directly to a cloud platform through wireless communication networks.
  • By utilizing Wi-Fi, 4G, or 5G connectivity, the gateway enables real-time remote monitoring without requiring a dedicated local PC. Users can access operational data anytime and anywhere through the E-RA software platform and cloud-based dashboards.
  • The gateway is ideal for IoT applications, remote monitoring systems, and distributed energy management projects.
  • Modbus ID and communication baud rate can be easily configured using onboard DIP switches.

⭐ Key Features

  • Reads data from Modbus RTU RS485 devices.
  • Transfers data to the cloud via Wi-Fi, 4G, or 5G networks.
  • Real-time monitoring through the E-RA platform.
  • Remote access from anywhere with Internet connectivity.
  • Eliminates the need for a continuously running local PC.
  • Supports centralized monitoring of multiple sites.
  • Suitable for IoT and Industry 4.0 applications.

⭐ Applications

  • Remote energy monitoring (temperature, pressure, current, voltage).
  • Integration into SCADA, BMS, or solar power systems.
  • Control of relays or output devices via cloud commands.
  • Building management systems (BMS).
  • Industrial IoT projects.
  • Multi-site monitoring and management.

Specifications

Parameter
Operating voltage 220–230V AC, 50/60Hz
Consumption power ≤ 1W
Operating temperature ≤ 70ºC
Operating Humidity ≤ 95%
Communication standard RS485
Baud rate 4800, 9600, 14400, 19200 – 8,N, (1–2)
Transmission Distance Max 1200m (Recommended: 700m)
Maximum Devices per Bus 10 devices
Compatible Cable AWG or equivalent

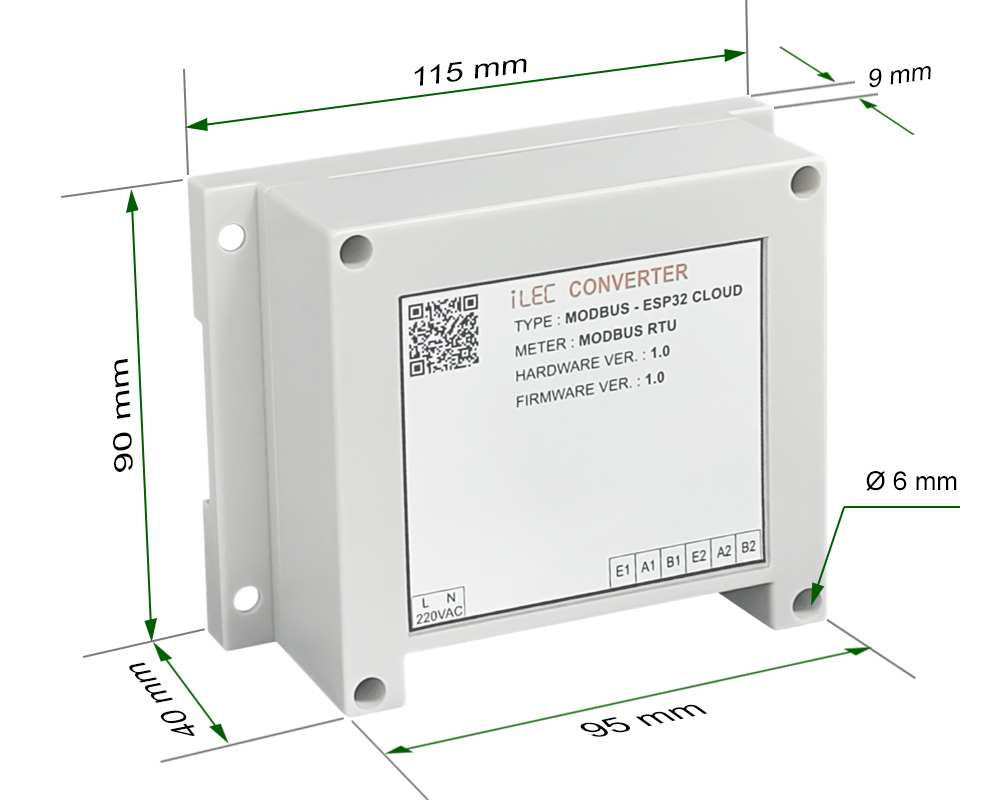

Kích thước Modbus-ESP32 Cloud

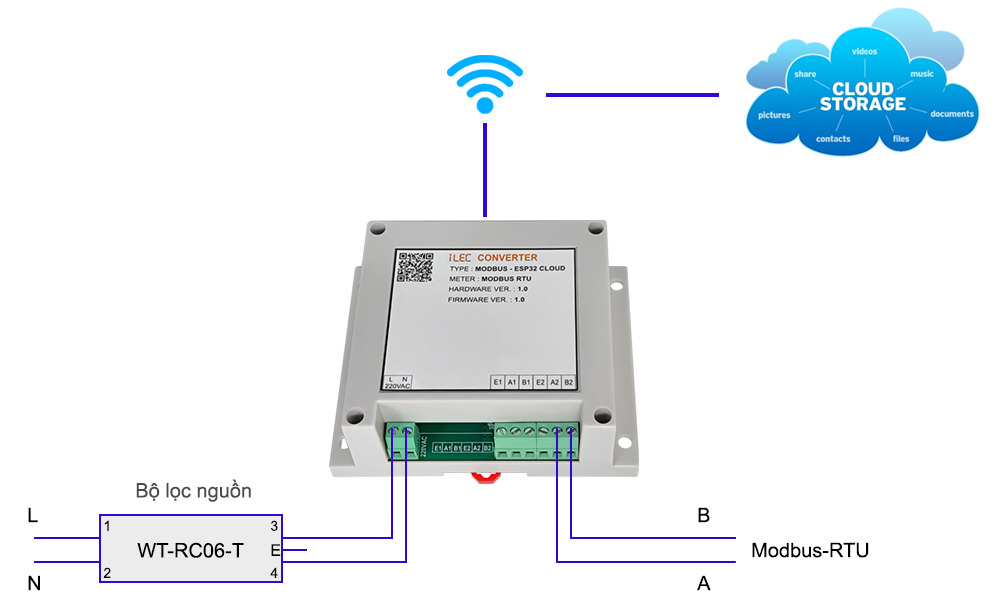

System Connection Diagram: iLEC Modbus ESP32

Resources & Support

Hits: 38

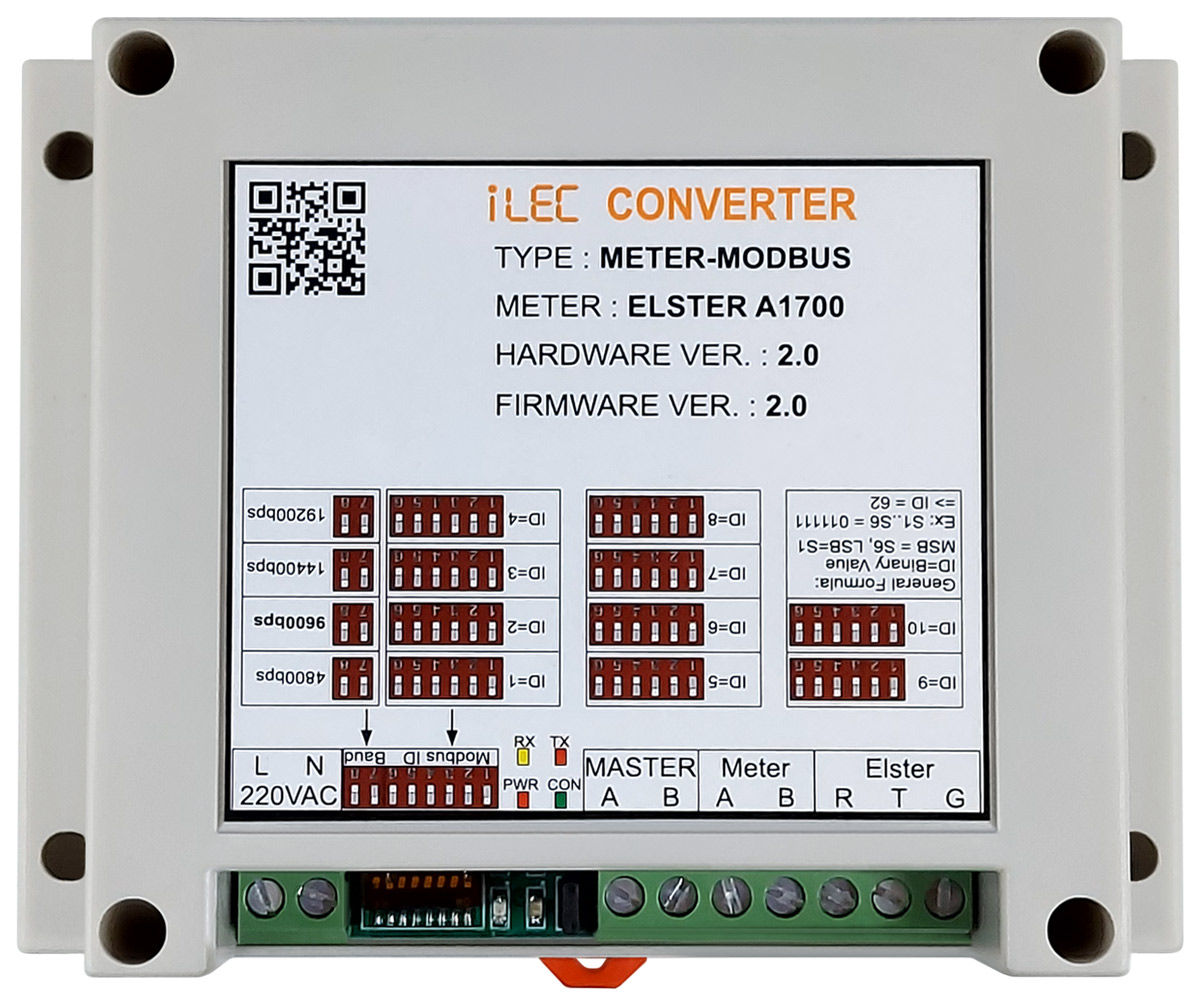

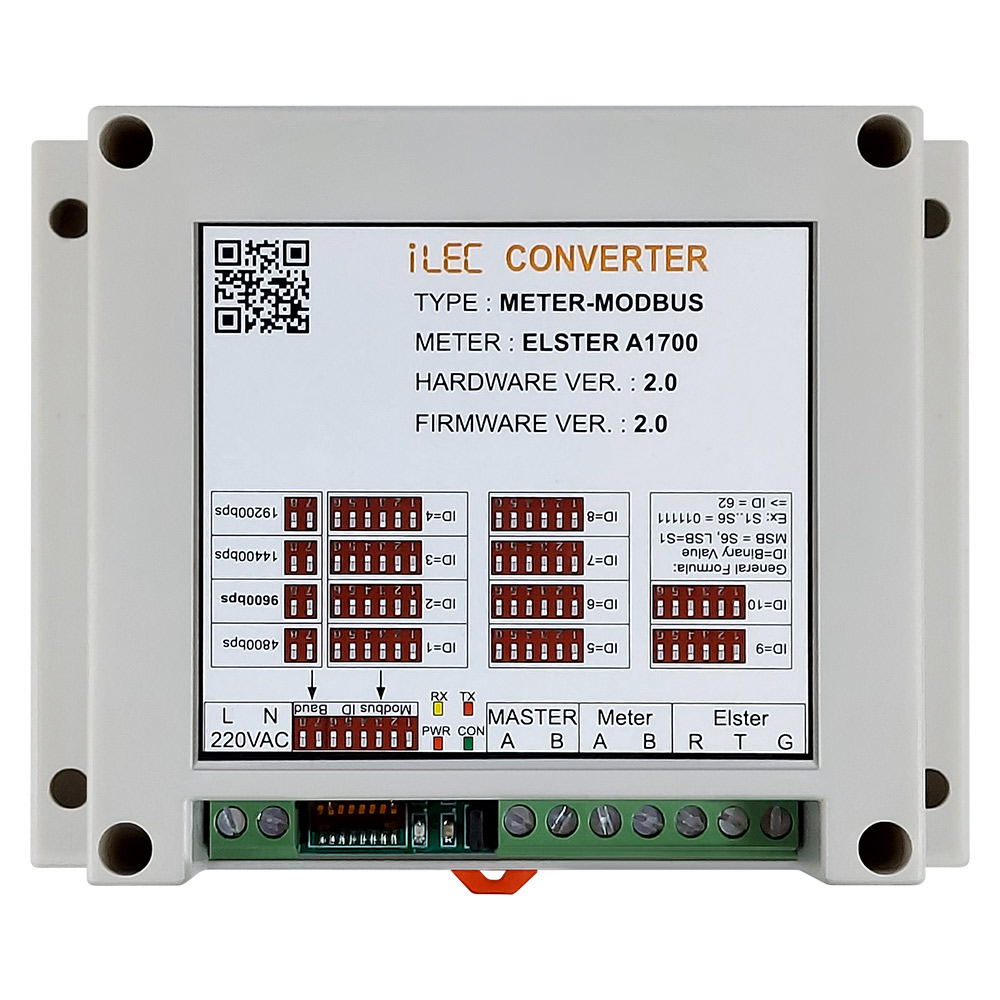

ILEC CONVERTER

TYPE: METER-MODBUS

Introduction

  • The Meter-Modbus Module is designed to read data from the Elster A1700 energy meter through the RS232 communication interface and convert the data into the Modbus RTU RS485 protocol.
  • The converter enables direct connection of Elster A1700 meters to SCADA systems, PLCs, HMIs, energy management software, and other industrial automation applications via a standard RS485 communication network.
  • Modbus ID and communication baud rate can be easily configured using onboard DIP switches.

Key Features

  • Reads data from Elster A1700 energy meters via RS232.<'li>
  • Converts data to Modbus RTU RS485.
  • Supports connection to PC through RS485-to-USB converters.
  • Compatible with SCADA, PLC, HMI, and monitoring software.
  • Adjustable Modbus ID and baud rate via DIP switches.
  • Compact industrial design for panel installation.
  • Stable and reliable communication.

Applications

  • Energy monitoring systems.
  • Electrical metering integration.
  • SCADA and PLC communication.
  • Industrial automation systems.
  • Power management applications.

Modbus Module User Guide for Elster A1700 Energy Meter

⭐ Prepare the required equipment according to the system configuration, including

⭐ Connect the devices according to the wiring diagram below:

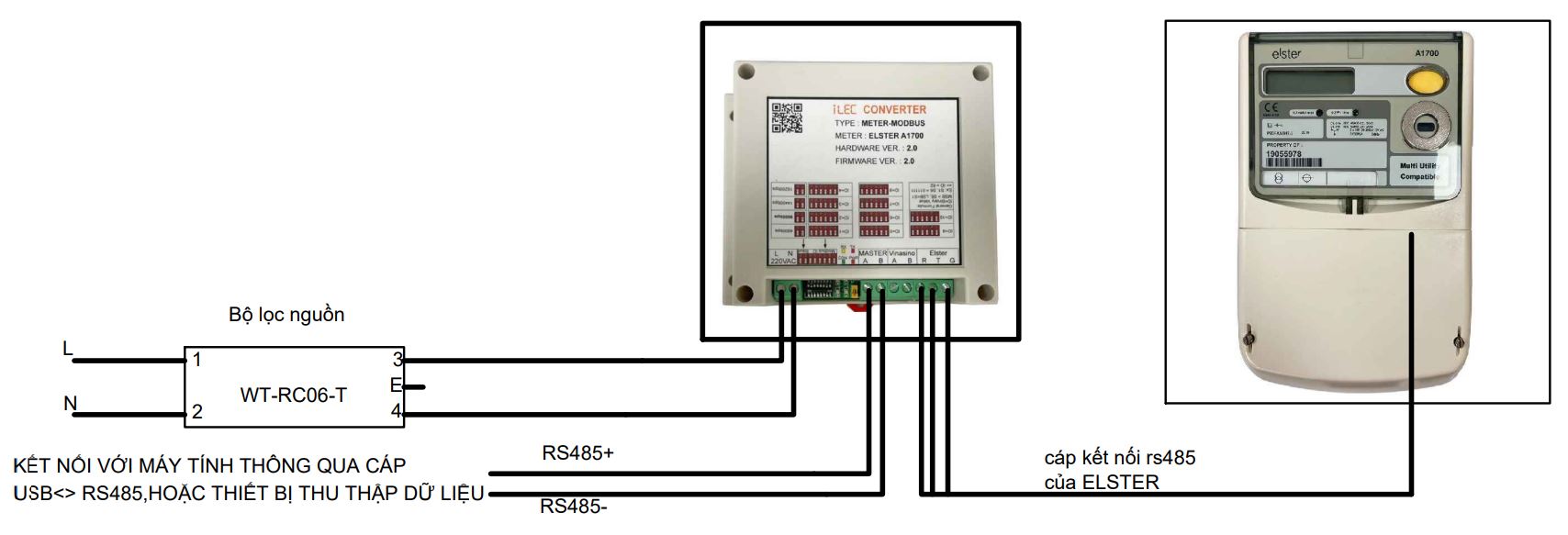

  • Modbus Module and Elster Meter Connection Diagram for PC or External Data Acquisition Device
  • Connection Diagram for the Modbus Module and Elster Meter to a PC or External Data Acquisition Device

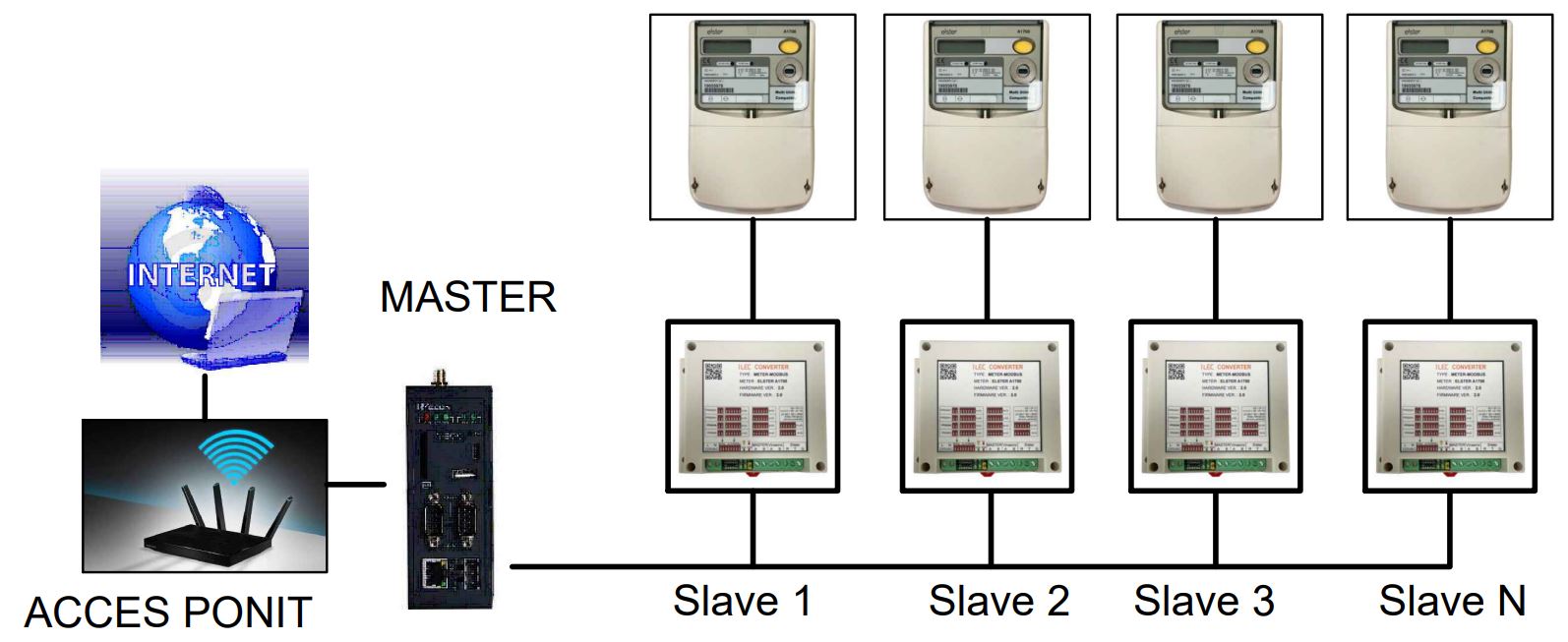

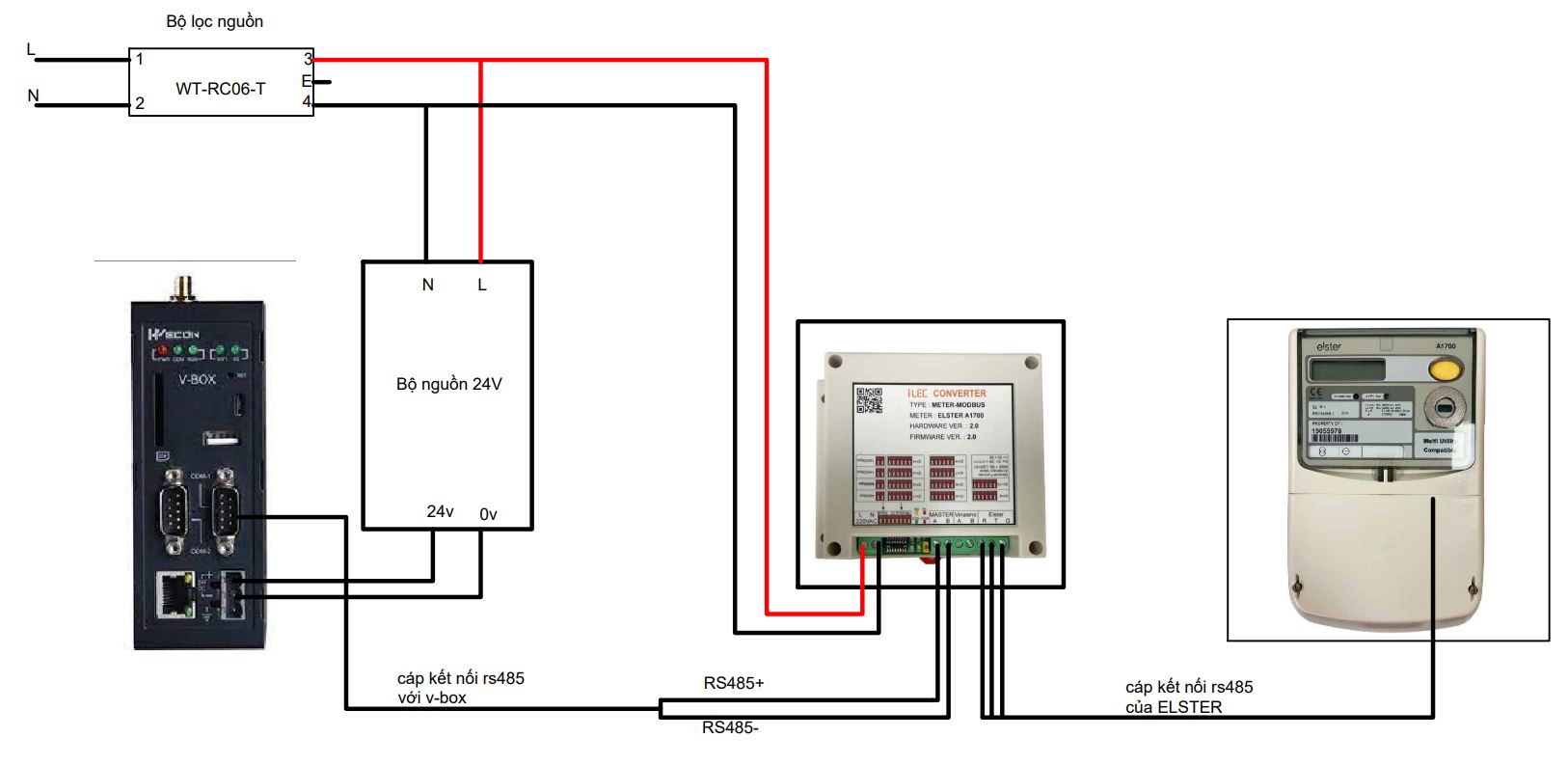

  • Single-Line Diagram for V-Box, Modbus Module, and Multiple Elster Meters
