iLEC SPLIT-CORE CURRENT TRANSFORMER
SCT SERIES
1. Introduction
- The SCT Series Current Transformer is specially designed for easy installation in both new and existing electrical systems. It is primarily used for accurate current measurement at a low cost.
- Due to its relatively large phase angle error and low output power, it is not recommended for power or energy measurement applications.
- Unlike conventional current transformers, which require disconnecting the primary circuit to pass cables or busbars through the transformer core, the SCT split-core current transformer can be installed without interrupting the power supply. This significantly reduces installation time and labor costs.
2. Features
- Compact split-core design for quick and easy installation.
- Double-insulated copper winding ensures safe operation and long-term durability.
- High accuracy and reliable performance.
- Installation without interrupting the power supply.
- Reduces installation time and labor costs.
- Compact design and long service life.

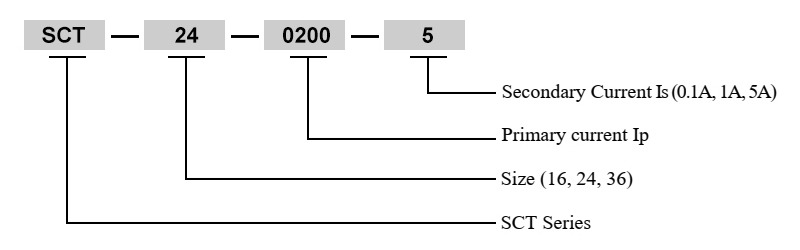

3. Product code structure
4. Dimension
( Unit: mm )
| Type |
W |
H |
D |
Ø |
M |
N |
| SCT-16 |
39 |
46 |
20 |
16 |
24 |
38 |
| SCT-24 |
55 |
70.5 |
39 |
24 |
36 |
52 |
| SCT-36 |
66 |
81.5 |
42 |
35 |
55.5 |
35 |
| SCT-50 |
79 |
110 |
60 |
48 |
40 |
66 |
5. General Specifications
| Parameter |
Values |
| Rated Frequency |
50/60Hz |
| Rated insulation voltage |
3kV AC. (1 min) |
| Rated short-time thermal current (Ith) |
60In / 1s |
| Rated dynamic current (Idyn) |
2.5Ith |
| Rated voltage (Un) |
0.66kV AV. |
| Continuous current (Id) |
1.2In |
| Operating temperature |
-10ºC ~ 50ºC |
| Housing self-extinguishing class |
Vo |
| Primary current |
20A ~ 1000A |
| Secondary current |
100mA, 1A, 5A |
| Current Accuracy |
Cl1.0, CL0.5 |
| Phase Angle Accuracy |
CL1.0, CL3.0 |
| Environment |
Indoor |
6. Ordering Information
| Model |
Ordering Code |
Ratio (Ip/Is, A) |
Burden (VA) Cl 1,0 |
Internal Diameter |
| SCT-16 |
SCT-16-0100-0.1 |
100/0.1A |
1.5VA |
Ø16 mm |
| SCT-24 |
SCT-24-0100-0.1 |
100/0.1A |
1.5VA |
Ø20 mm |
| SCT-24-0030-1 |
30/1A |
1VA |
| SCT-24-0040-1 |
40/1A |
1.5VA |
| SCT-24-0050-1 |
50/1A |
1.5VA |
| SCT-24-0060-1 |
60/1A |
1.5VA |
| SCT-24-0080-1 |
80/1A |
2.0VA |
| SCT-24-0100-1 |
100/1A |
2.5VA |
| SCT-24-0050-5 |
50/5A |
1.0VA (Class 3,0) |
| SCT-24-0100-5 |
100/5A |
1.0VA |
| SCT-24-0150-5 |
150/5A |
1.0VA |
| SCT-24-0200-5 |
200/5A |
1.0VA |
| SCT-24-0250-5 |
250/5A |
1.5VA |
| SCT-24-0300-5 |
300/5A |
1.5VA |
| SCT-24-0400-5 |
400/5A |
2.0VA |
| SCT-24-0500-5 |
500/5A |
2.5VA |
| SCT-24-0600-5 |
600/5A |
2.5VA |
| SCT-36 |
SCT-36-0100-0.1 |
100/0.1A |
1.5VA |
Ø36 mm |
| SCT-36-0030-1 |
30/1A |
1.5VA |
| SCT-36-0040-1 |
40/1A |
1.5VA |
| SCT-36-0050-1 |
50/1A |
1.5VA |
| SCT-36-0060-1 |
60/1A |
1.5VA |
| SCT-36-0080-1 |
80/1A |
2VA |
| SCT-36-0100-1 |
100/1A |
2.5VA |
| SCT-36-0150-5 |
150/5A |
1VA |
| SCT-36-0200-5 |
200/5A |
1VA |
| SCT-36-0250-5 |
250/5A |
1.5VA |
| SCT-36-0300-5 |
300/5A |
1.5VA |
| SCT-36-0400-5 |
400/5A |
1.5VA |
| SCT-36-0500-5 |
500/5A |
2VA |
| SCT-36-0500-5 |
600/5A |
2.5VA |
| SCT-36-0800-5 |
800/5A |
3VA |
| SCT-50 |
SCT-50-0400-5 |
400/5A |
3.75VA |
Ø50 mm |
| SCT-50-0500-5 |
500/5A |
5VA |
| SCT-50-0600-5 |
600/5A |
5VA |
| SCT-50-0800-5 |
800/5A |
7.5VA |
| SCT-50-1000-5 |
1000/5A |
10VA |
| SCT-50-1200-5 |
1200/5A |
10VA |
| SCT-50-1500-5 |
1500/5A |
15VA |
| SCT-50-1600-5 |
1600/5A |
15VA |
