TBR

Model TBR

DIN Rail Installation Structure: Designed for quick and secure mounting onto standard aluminum or iron rails (35mm DIN Rail) via an engineered snap-on base mechanism.
Flexible Assembly: Possible to assemble the terminal blocks with different capacities onto the same fixing plate, allowing for highly customized configurations.
Efficient Handling: Features excellent attaching and detaching of the terminal at the temporal position, making wiring modifications fast and effortless.
Various Specifications: Offers diverse models tailored for each rated current to match precise system requirements.
Housing Structure: Made of high-grade engineering plastic with excellent electrical insulation, high heat resistance, and flame-retardant properties.
Electrical Contact: Features an internal highly conductive metal bar connecting the two screw terminals, ensuring seamless connectivity between wire ends.
Screw Clamp Mechanism: Equipped with 2 robust metal screw clamps to tightly secure the wire cores, preventing loose connections or heat generation during current transmission.

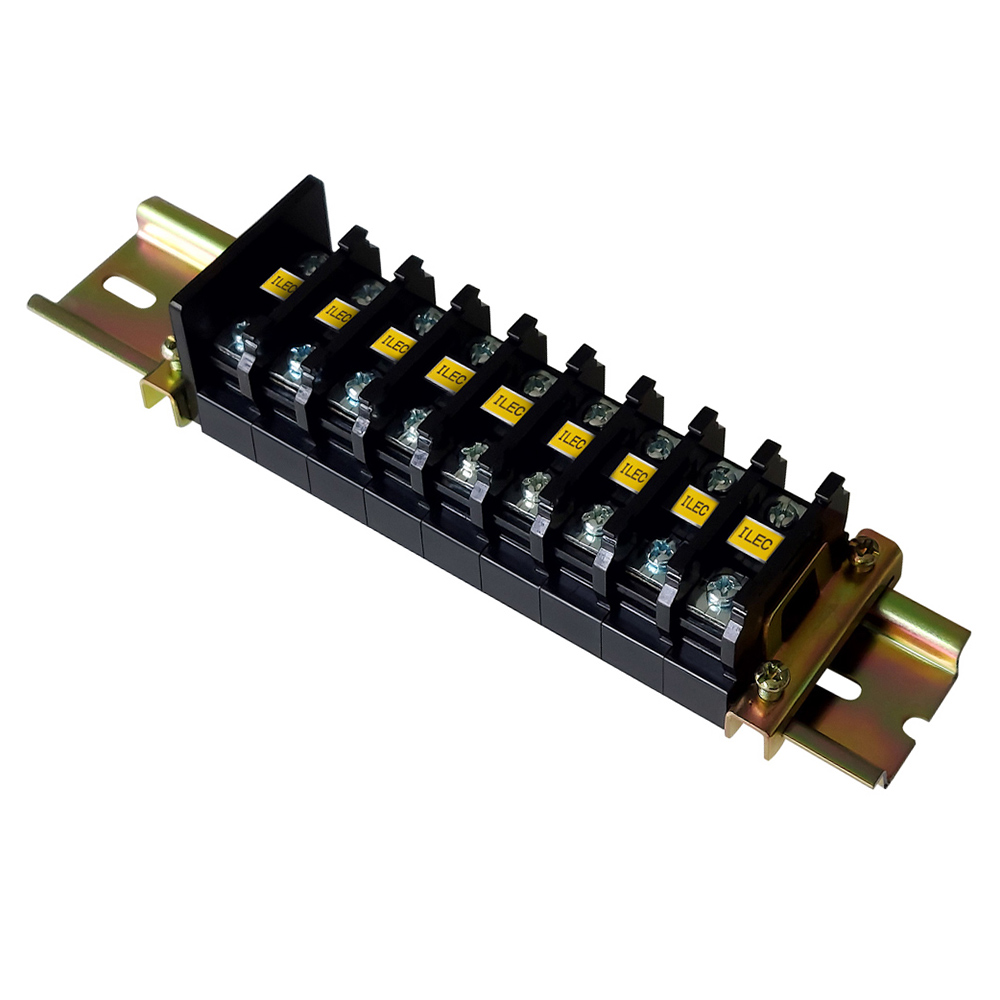

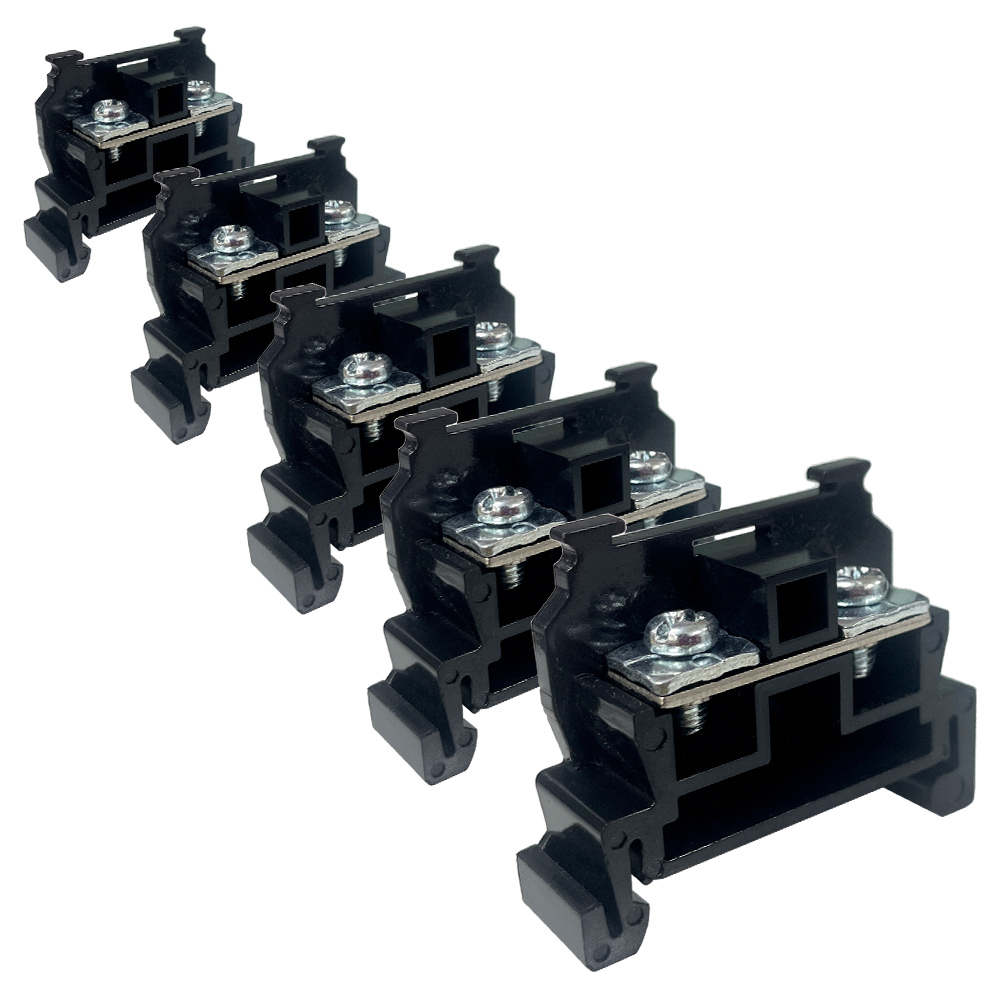

Interlocking Design: Side slots feature a tongue-and-groove interlocking system, enabling multiple terminal units to be linked together to form a multi-pole block of any desired size (e.g., 3-phase, 4-phase blocks).

Wiring & Power Distribution: Serves as an intermediary bridge to connect electrical wires (power lines, control signal lines) from one device to another, or to branch out wiring inside electrical cabinets.
Safety Assurance: Completely insulates wire connections from the enclosure and between different phases, minimizing the risk of short circuits, fires, or electrical shocks caused by open circuits.
Neatness & Aesthetics: Helps organize complex wiring systems into a fixed location, creating a tidy, professional layout for electrical panels.
Easy Maintenance & Repair: When inspection or equipment replacement is required, engineers only need to loosen the screws to disconnect the wires at the terminal block, eliminating the need to cut wires or re-apply electrical tape manually, saving significant time.

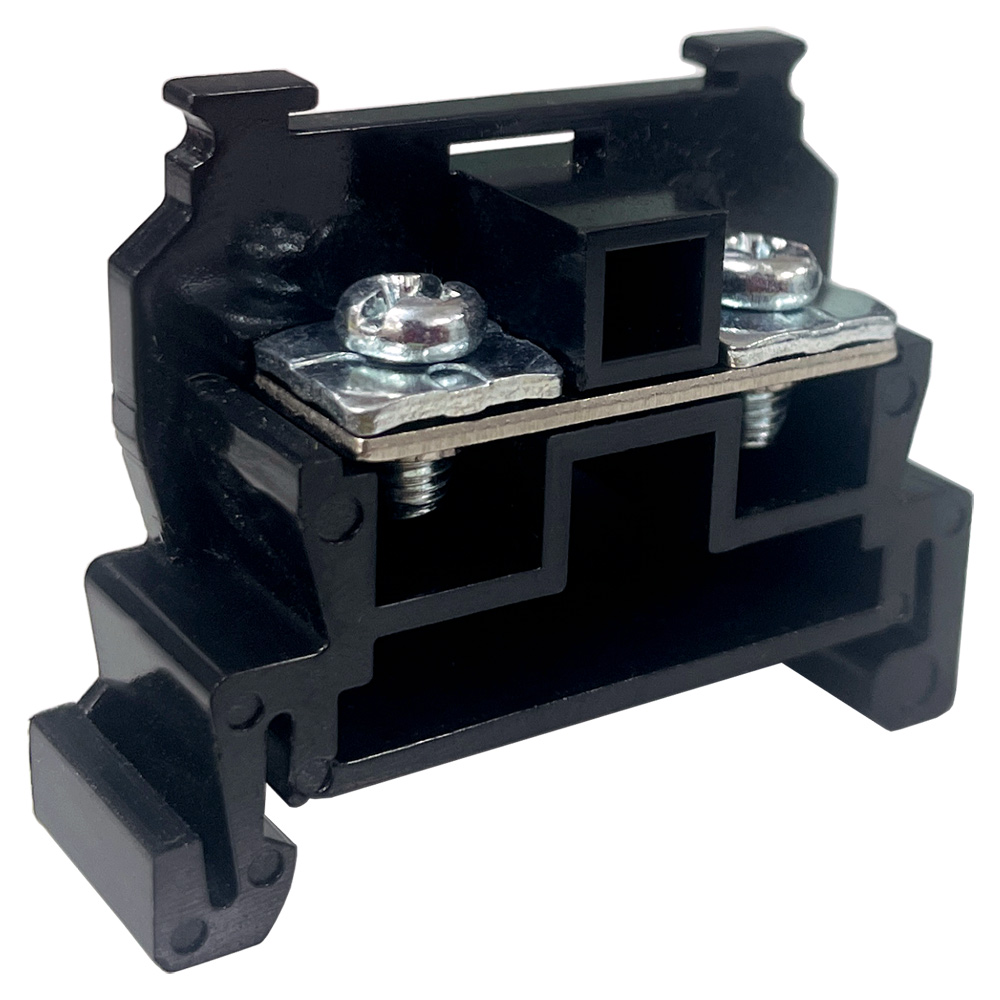

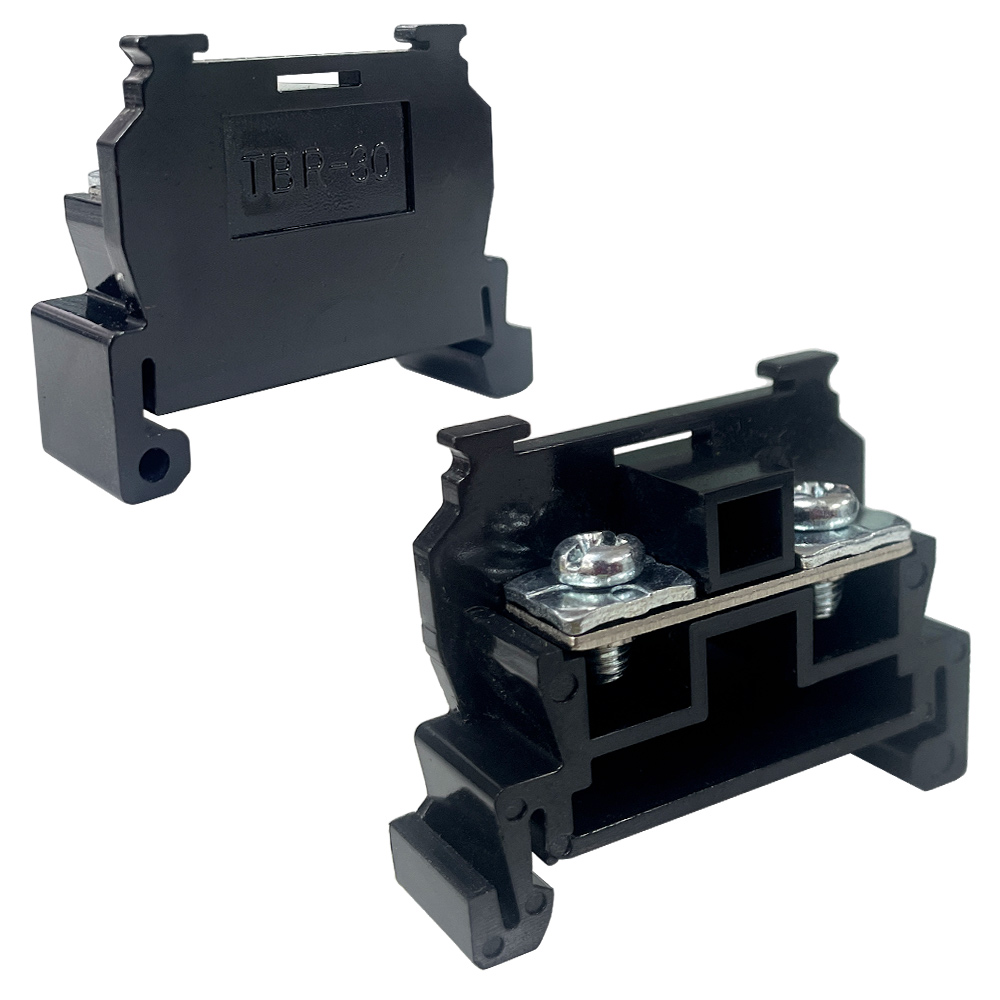

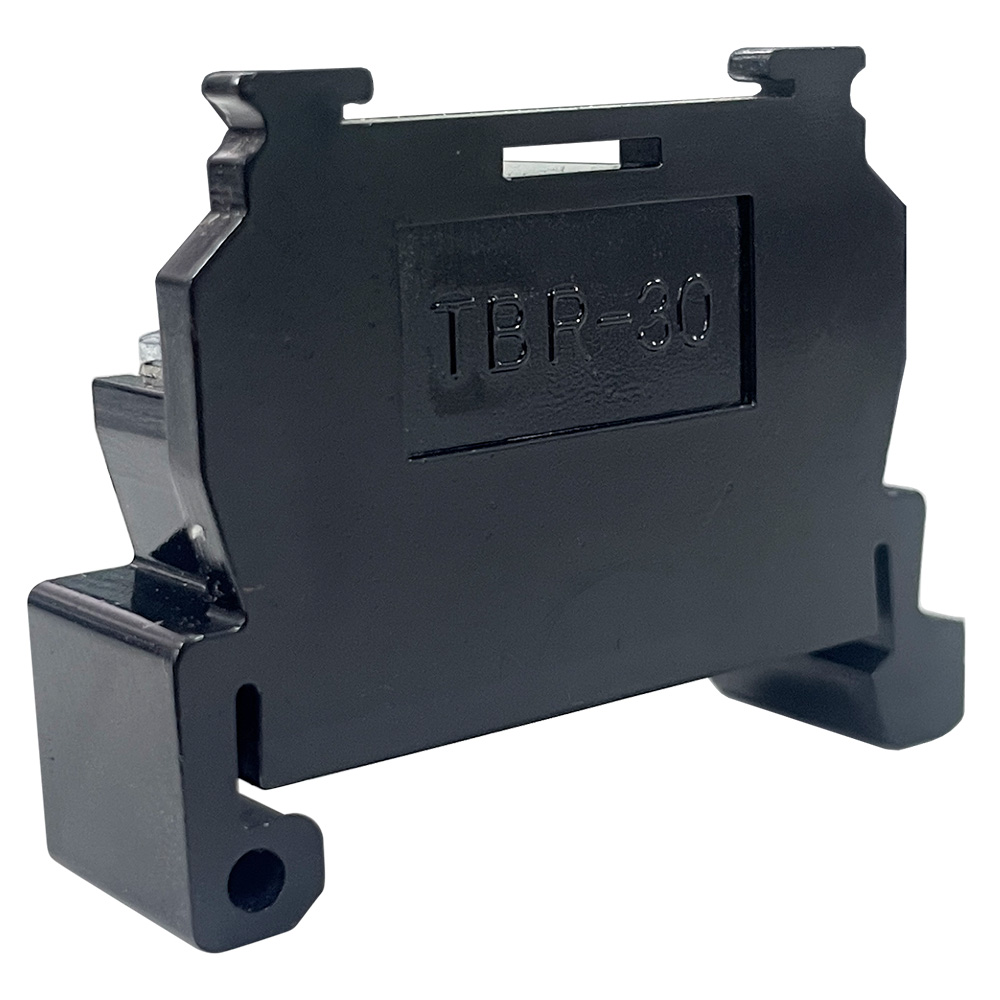

TBR Assembly Terminal Block
