Auto Volt-Amp Protection Relay
VAP-63/1PN
General Description
The iLEC VAP-63/1PN is an automatic volt-amp protection relay designed to safeguard household appliances, machinery, electrical cabinets, and power systems against critical overvoltage, undervoltage, and overcurrent faults. Featuring a compact modular design, this device provides reliable real-time monitoring and protection, making it an ideal safety solution for homes, offices, retail shops, and small industrial workshops.
VAP-63/1PN – Auto Volt-Amp Protection Relay
Key Features
- Brand & Origin: Manufactured by iLEC – Vietnam, ensuring high quality and operational reliability.
- Compact & Durable Housing: Features a compact design with a flame-retardant engineering plastic housing that provides excellent insulation and high heat resistance.
- Standard DIN-Rail Mounting: Designed as a modular component suitable for quick and simple installation on standard 35mm DIN rails in both residential and industrial electrical panels.
- Real-Time LED Display: Equipped with an intuitive LED screen that delivers clear, real-time monitoring of voltage, current, and active operating status.
- Flexible & Convenient Configuration: Protection thresholds for voltage and current, as well as the recovery delay time, can be easily configured via front-panel function buttons for convenient operation.
- High-Quality Hardware: Built with screw-type terminals to ensure fast, secure wiring connections, and high-durability conductive alloy relay contacts for long-lasting performance.
- Auto-Reclosing Function: Features automatic power cut-off to isolate faults and automatic reconnection (auto-recloses) once the voltage and current parameters return to normal and stabilize.

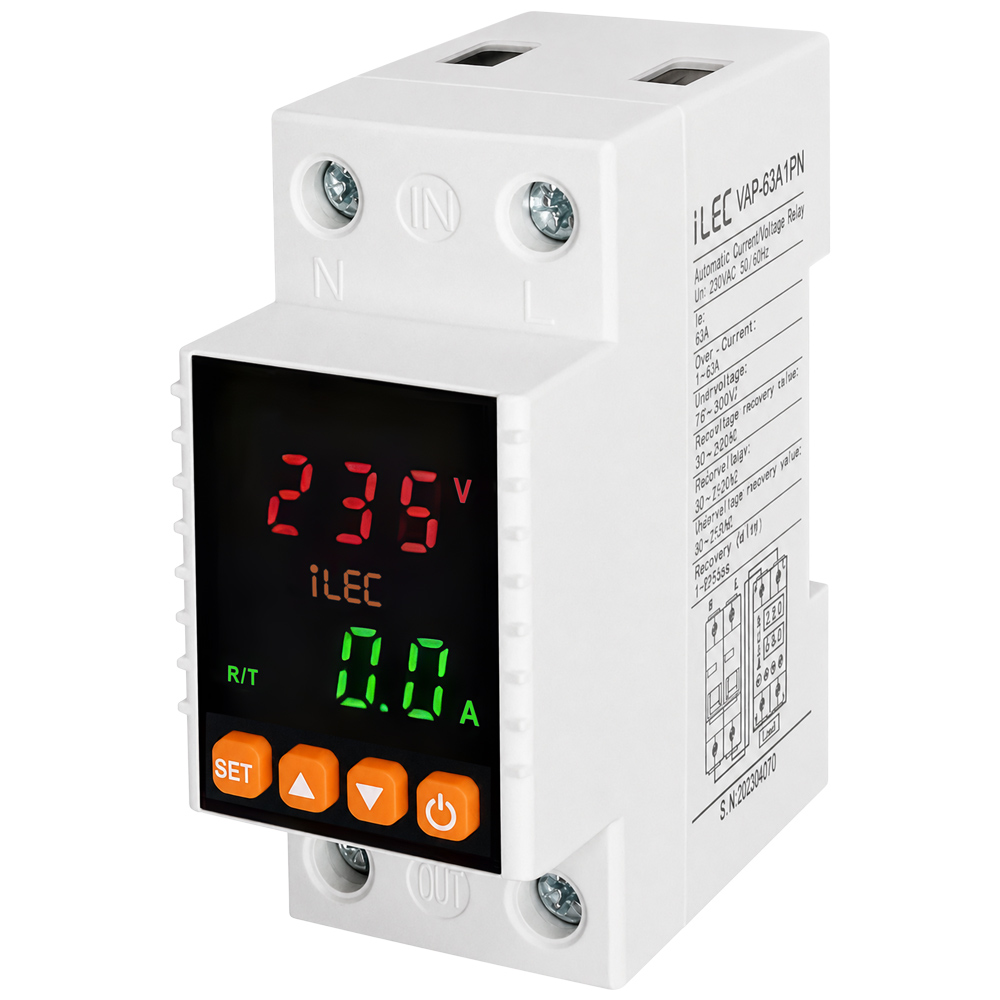

Front-Face Panel
Specifications
| PARAMETER | VALUE |
| Supply terminal | N, L |
| Rated supply voltage | AC 220V |
| Rated frequency | 50/60Hz |
| Overvoltage protection setting range | 130 – 300V |
| Undervoltage protection setting range | 80 – 210V |
| Voltage hysteresis | 5V |
| Overvoltage trip delay | 0.5s |
| Voltage accuracy | <1% |
| Max. operating phase voltage | 350V |
| Max. operating current | 63A |
| Altitude | ≤2000m |
| Ambient temperature | -25ºC ~ 50ºC |
| Permissible relative humidity | ≤50% at 40ºC (without condensation) |
| Storage temperature | -25ºC ~ 55ºC |
Dimension
Wiring diagram
Resources & Support
- User Manual: [ English ] [Vietnamese]
